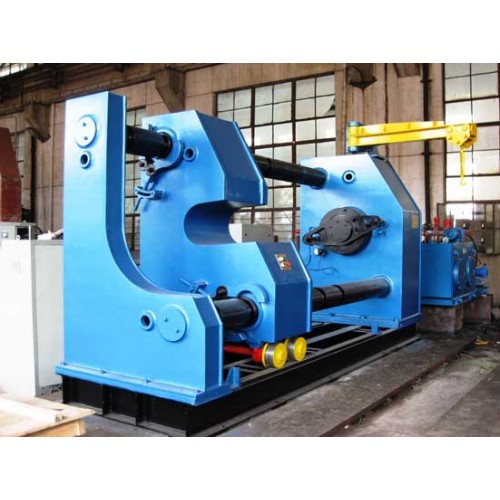

3150KN Axle-pressing Machine

Nominal pressure: 3150KN

Maxmun stroke: 600mm

Maxmum gear/axle diameter: 1300/350mm

Maxmum inlay length: 2200mm

Press speed: 0~4

Main motor power: 18.5kw

Dimension:5360×1200×2400mm

CAPABILITY

• Ezhong is specialized in Horizontal Axle Press Machine with a history over 30 years while the development of experience all the time. This series of machine is our new model product with independent intellectual property rights which based on German and Japan companies' technology. And they are Ezhong whole new generation machines with Ezhong proprietary intellectual property rights.

• This machine is widely used in locomotive, machinery and motor manufacture industry, it is used to press and dismantle the large axial parts which are interference fit.

• All indicating instruments adopt international system of units. The pressure display applies the digital display technology.

• This upgraded machine was composed by fixed beams, working beams, pillar, chassis, cantilever crane, iron device, extension rod, hydraulic system, electrical system and other major parts. Former fixed beams, walking beams, rear support bracket, chassis parts are all of casting steel. The rear only supports the two pillars.
